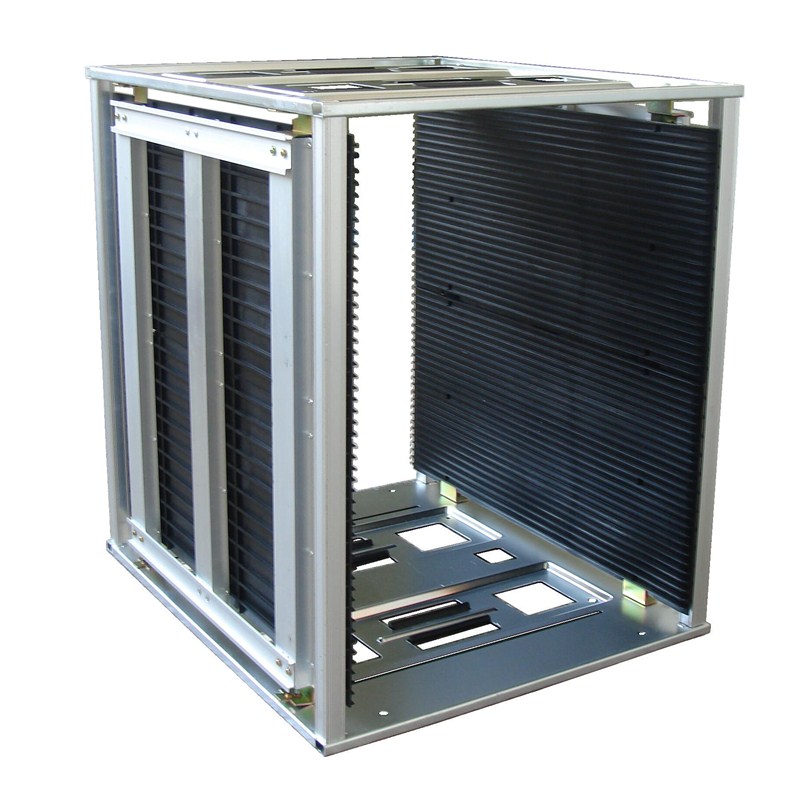

SMT magazine rack is designed for the manufacture, assembly, storage and transfer of PCB.

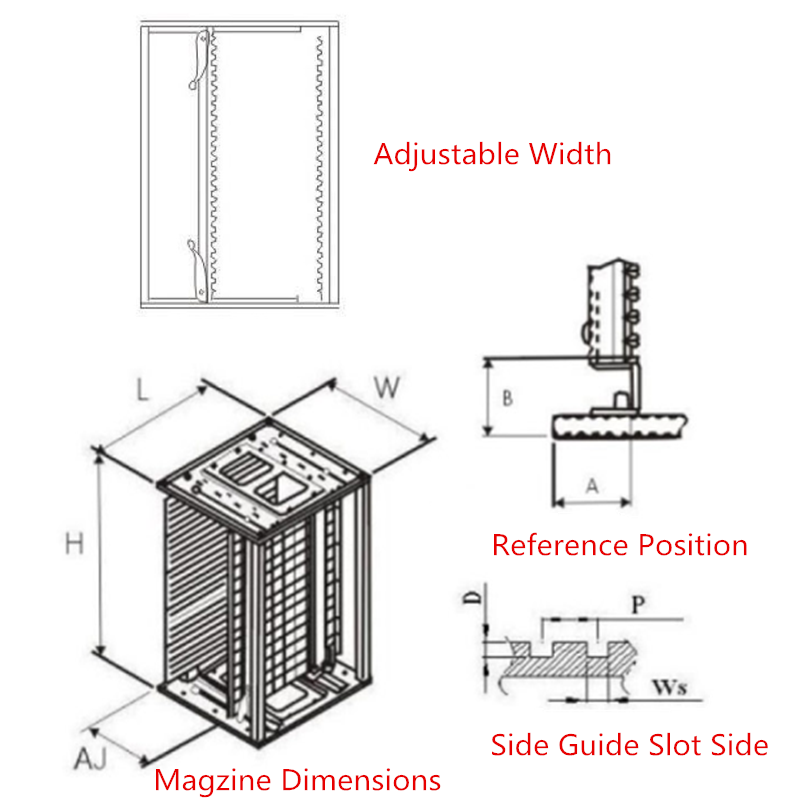

Adjustable through screws, gear adjustment.

Common type (60℃) and heat-resistance type(120℃ ,160~200℃) are available.

Surface resistance: 10⁴~10⁶ Ω.

Base: P-Conductive PS, M-Zincification Iron

Adjustment: G-Gear track adjustment, S-Screw adjustment

Max tolerant temperature: 60℃,120℃,160~200℃ different material

PCB slots:The number of the SMT magazine rack Can accommodate PCBs
