SMT magazine rack is designed for the manufacture, assembly, storage and transfer of PCB.
Adjustable through screws, gear adjustment.
Common type (60℃) and heat-resistance type(120℃ ,160~200℃) are available.
Surface resistance: 104~106 Ω.
Base: P-Conductive PS, M-Zincification Iron
Adjustment: G-Gear track adjustment, S-Screw adjustment
Max tolerant temperature: 60℃,120℃,160~200℃ different material
PCB slots:The number of the SMT magazine rack Can accommodate PCBs
Features and Advantages:
Strong injection moulded construction with metal reinforcement
Meet standard dimensions most frequently used on automated lines
Not subject to accidental change in width. No wear of moving parts.
Partition is made of assembled plastic parts ,surface resistance 10e4-10e6ohms
This system provides a better dimensional stability when strong
P．N． |

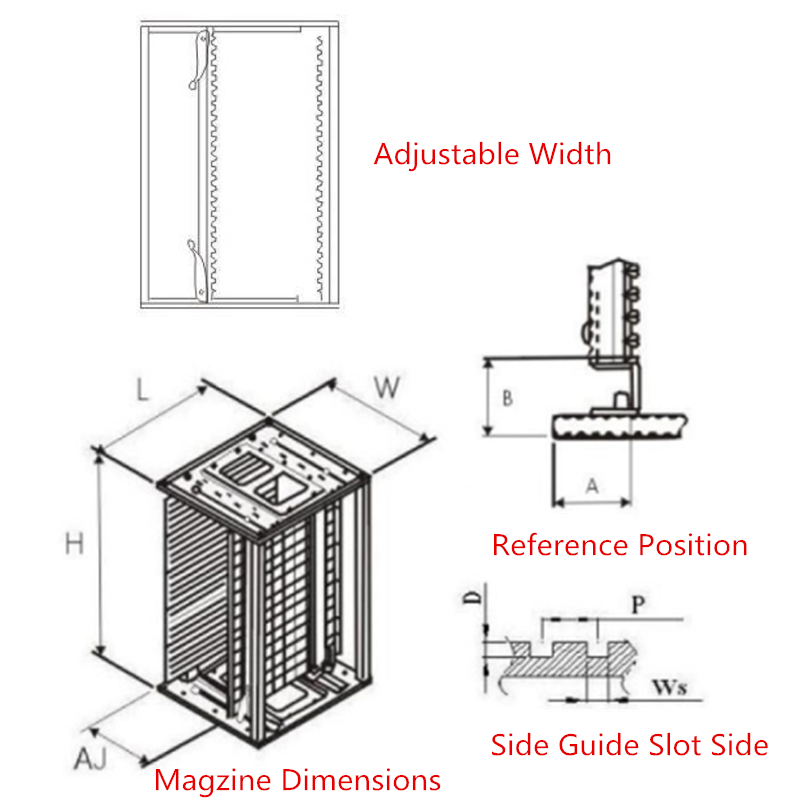

| Adjust. | MaxTem. | mm Exterior Size |
| mm | mm |
| kg | |||||
L | W | H | A | B | D | Ws | P | |||||||
B0101 |
|
| 120℃ | 355 | 320 | 263 | 50-250 | 34 | 34 | 3.5 | 5.0 | 10.0 | 20 | 4.7 |
B0102 | Plastic | Screw | 60℃ | 335 | 315 | 580 | 80-250 | 34 | 34 | 3.5 | 8.0 | 10.0 | 50 | 5.1 |
B0103 |
|
| 120℃ | 355 | 320 | 563 | 50-250 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 | 5.6 |
B0104 |
|
| 180℃ | 355 | 320 | 563 | 50-250 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 | 5.7 |
B0105 |
|
| 120℃ | 355 | 320 | 563 | 50-250 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 | 4.1 |
B0106 |
|
| 120℃ | 460 | 400 | 563 | 50-330 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 | 7.6 |
B0106-3 | Metal | Secrew | 120℃ | 460 | 400 | 563 | 50-330 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 | 7.8 |
B0107 |
|
| 120℃ | 460 | 400 | 563 | 50-330 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 | 7.7 |
B0108 |
|
| 120℃ | 535 | 460 | 570 | 50-390 | 34 | 41 | 3.5 | 5.0 | 10.0 | 50 | 10.5 |
B0109 |
|
| 120℃ | 535 | 530 | 570 | 120-460 | 34 | 41 | 3.5 | 5.0 | 10.0 | 50 | 12.7 |
B0110 |
|
| 120℃ | 355 | 320 | 263 | 50-250 | 34 | 34 | 3.5 | 5.0 | 10.0 | 30 | 5.3 |
SMT magazine rack is designed for the manufacture, assembly, storage and transfer of PCB.
MEAS : 1250*1050*1299mm
Weight : 380kg
40pcs/ctn
