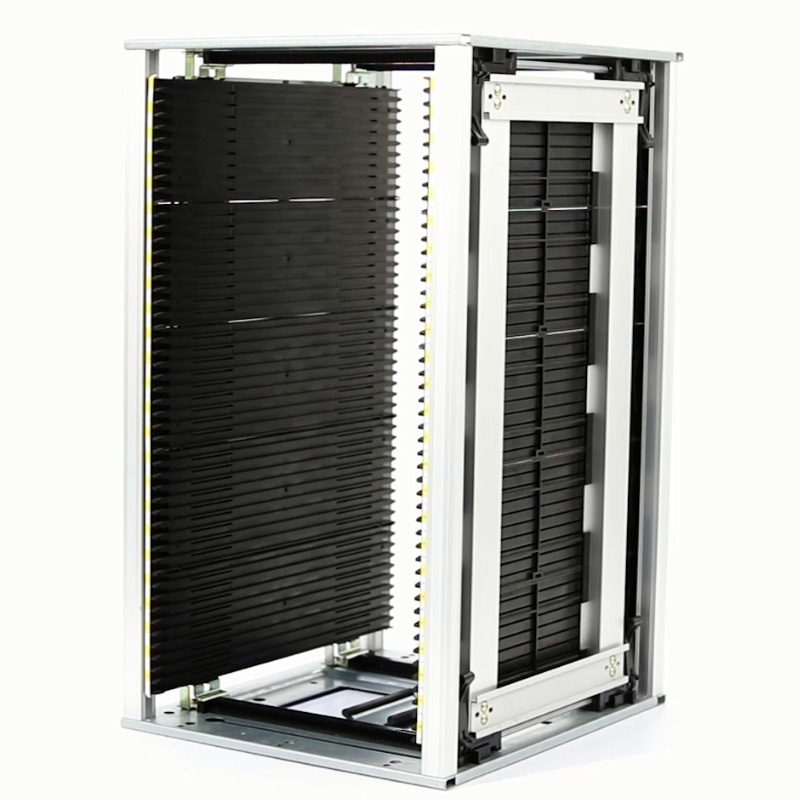

B0103-AU Automatic Adjustment ESD SMT Magazine Rack

Model: B0103-AU
Brand: Maxsharer
Delivery: 7-15 working days
Warranty: 12 months

Description

Product Description

Quick Adjustment Type ESD Magazine Rack

We have released a new ESD Magazine Rack, which makes the customer's use more convenient and greatly improves the production efficiency.

Let me introduce how to use this one.

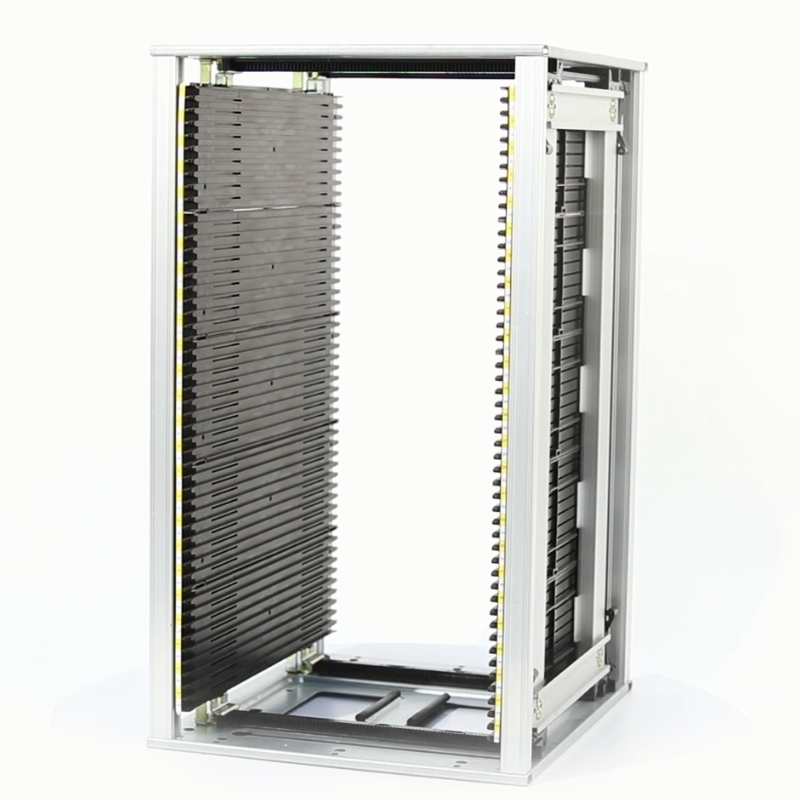

Auto Adjustment SMT Rack4.jpg

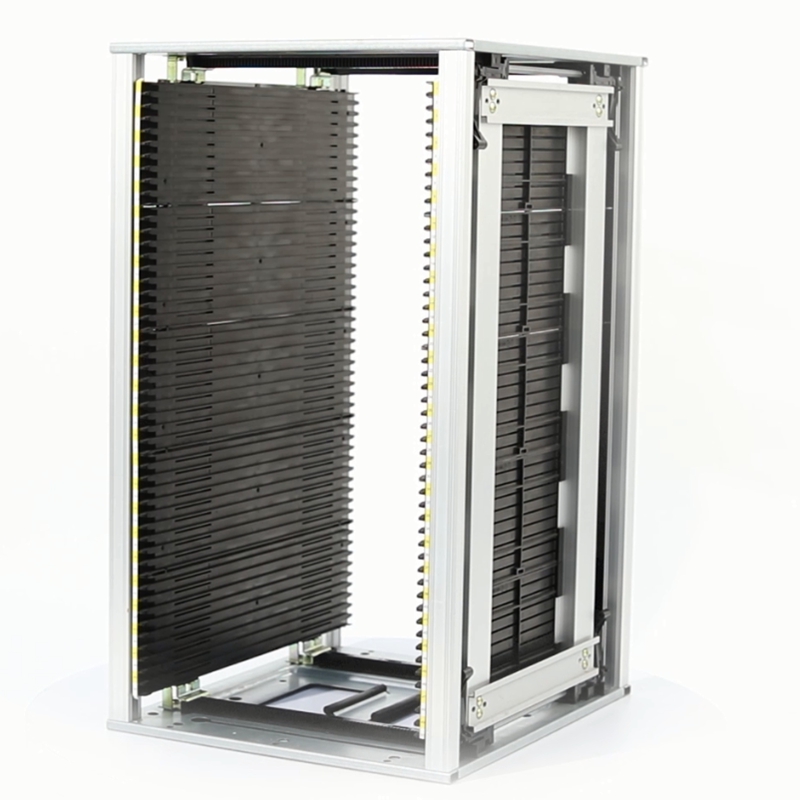

Step 1.

Just put the PCB at the bottom

Auto Adjustment SMT Rack6.jpg

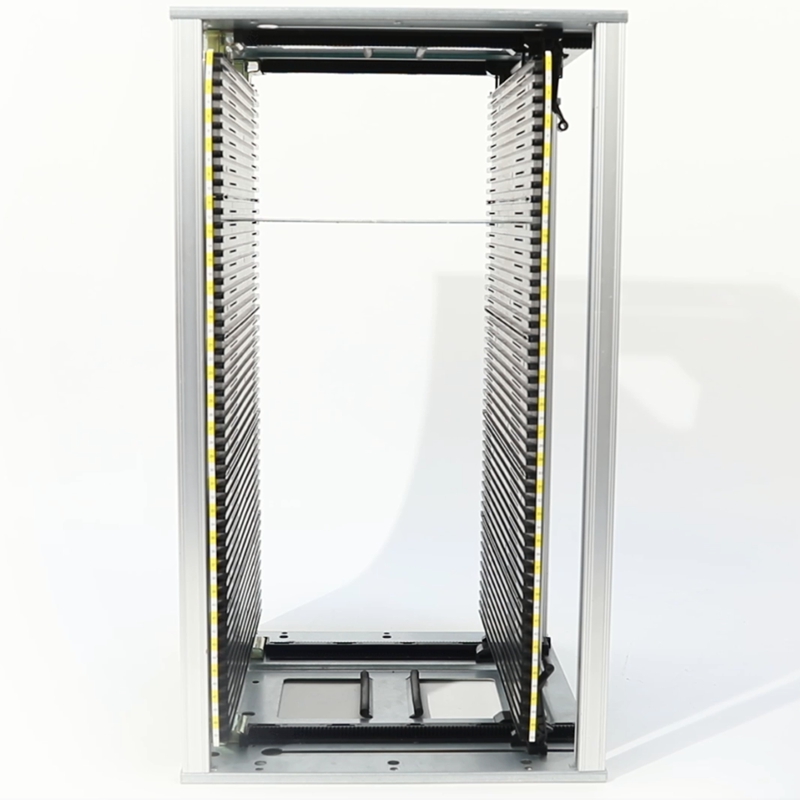

Step 2.

Push the adjustable sideboard for width positioning.

Because we have made a patented invention in the metal part at the bottom,so it

could achieve fast positioning effect.

Automatic Adjust Rack 1.png

Step 3.

Lock up 4 handles

Automatic Adjust Rack 2.png

Automatic Adjust Rack 3.png

Step 4.

After lock all four handles and remove the PCB.

The PCB will now slide smoothly into each rail .

Automatic Adjust Rack 4.png

Step 5.

To prevent the PCB from slipping out, we have spring stopper

Picture as below

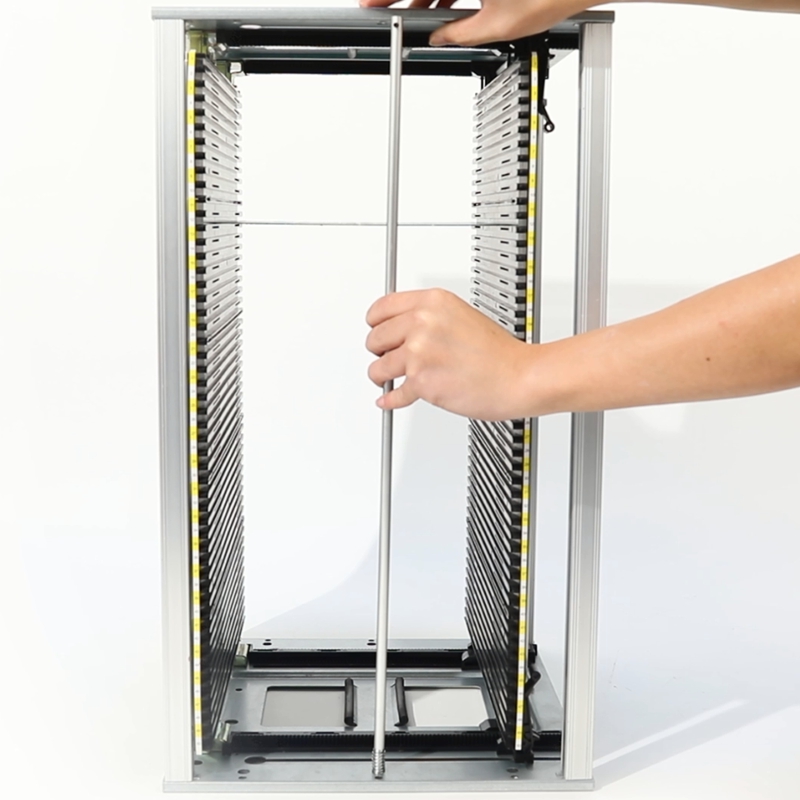

Auto Adjustment SMT Rack3.jpg

Automatic Adjust Rack 5.png

Automatic Adjust Rack 6.png

Specification

P．N．	Base Material	Adjust.	MaxTem.	mm Exterior Size			Adjust. mm	mm Ref.Position		mm Guide Slot			PCB Slots	kg weight
P．N．	Base Material	Adjust.	MaxTem.	L	W	H	Adjust. mm	A	B	D	Ws	P	PCB Slots	kg weight
B0101	Plastic	Gear track	60℃	355	320	263	50-250	34	34	3.5	5.0	10.0	20	4.7
B0102	Plastic	Screw	60℃	335	315	580	80-250	34	34	3.5	8.0	10.0	50	5.1
B0103	Metal	Gear track	120℃	355	320	563	50-250	34	34	3.5	5.0	10.0	50	5.6
B0103A	Metal	Gear track	120℃	400	320	563	50-250	34	34	3.5	5.0	10.0	50	5.8
B0104	Metal	Screw	150℃	355	320	563	50-250	34	34	3.5	5.0	10.0	50	5.7
B0105	Plastic	Gear track	120℃	355	320	563	50-250	34	34	3.5	5.0	10.0	50	4.1
B0106	Metal	Gear track	120℃	460	400	563	50-330	34	34	3.5	5.0	10.0	50	7.6
B0106-3	Metal	Gear track	120℃	460	400	563	50-330	34	34	3.5	5.0	10.0	50	7.8
B0107	Metal	Screw	120℃	460	400	563	50-330	34	34	3.5	5.0	10.0	50	7.7
B0107-3	Metal	Screw	120℃	460	400	563	50-330	34	34	3.5	5.0	10.0	50	7.9
B0108	Metal	Gear track	120℃	535	460	570	50-390	34	41	3.5	5.0	10.0	50	10.5
B0109	Metal	Gear track	120℃	535	530	570	120-460	34	41	3.5	5.0	10.0	50	12.7
B0110	Metal	Gear track	120℃	355	320	263	50-250	34	34	3.5	5.0	10.0	30	5.3

Application

The SMT magazine rack is designed for PCBs manufacture, assembly, storage and transfer。

Adjustable through screws,gear adjustment.

Common type (60℃) and heat-resistance type(120℃ , 150℃) are available.

Surface resistance: 10⁴~10⁶ Ω.
