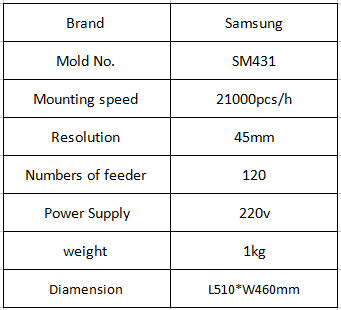

1. Mounting speed: chip 21k CPH (IPC9850) / QFP 5.5K CPH (IPC9850)
2. Corresponding components: Max 0402-55mm (component height H = 15mm)
3. Mounting accuracy: Cbip +/- 50um (Cpk 1.0) / QFP +/- 30UM (Cpk 1.0)
4. Corresponding PCB: L460 * W400 * 1Lane (standard) / Max L610 * W510 * 1 Lane
5. Centering mode: flight vision + fixed vision
6. Number of axes: 6 axes * 1 stand
7. Mounting speed: flight vision
1.CHIP 1608 21000 CPH (IPC9850)
2.SOP 15000 CPH (IPC9850)
3.QFP 5500 CPH (IPC9850)
4. Fixed vision: 1.4sec / QFP 208 basis material
5. Mounting accuracy: CHIP / QFP ± 50, CHIP, ± 30 / QFP
6. Mounting range: 0603 ~ 22mm IC, optional 0402 ~ 44mm
7. Maximum height: H = 12mm (standard flight camera) H = 15mm (standard fixed camera)
8.PCB board size: minimum 50L * 40W maximum 460L * 400W / options: 510L * 460W, 610L * 510W
9. PCB thickness 0.38-4.2
by wooden case
