MS-811

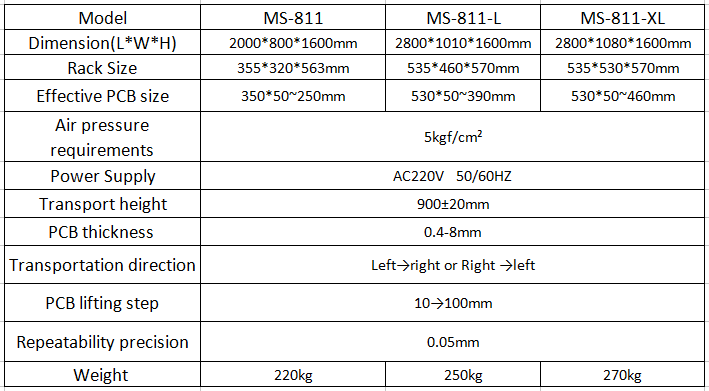

Dimension (L*W*H):2000*800*1600mm, rack size:355*320*563mm, PCB size:350*50~250mm

MS-810-L

Dimension(L*W*H):2800*1010*1600mm, rack size:535*460*570mm, PCB size:530*50~390mm

MS-810-XL

Dimension(L*W*H):2800*1080*1600mm, rack size:535*530*570mm, PCB size:530*50~460mm

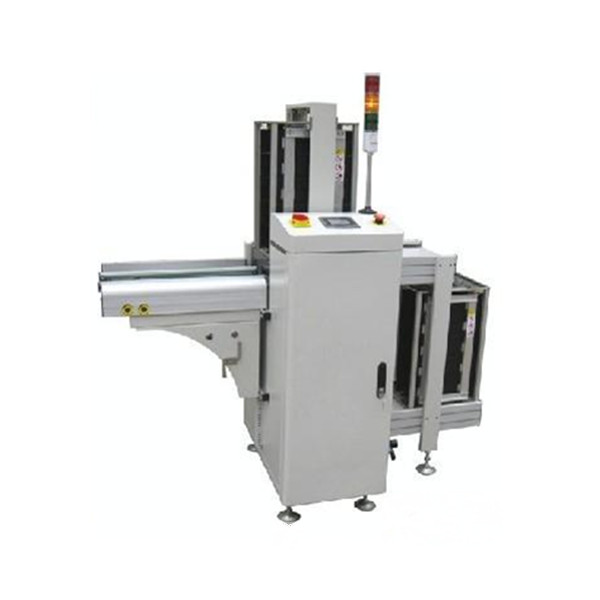

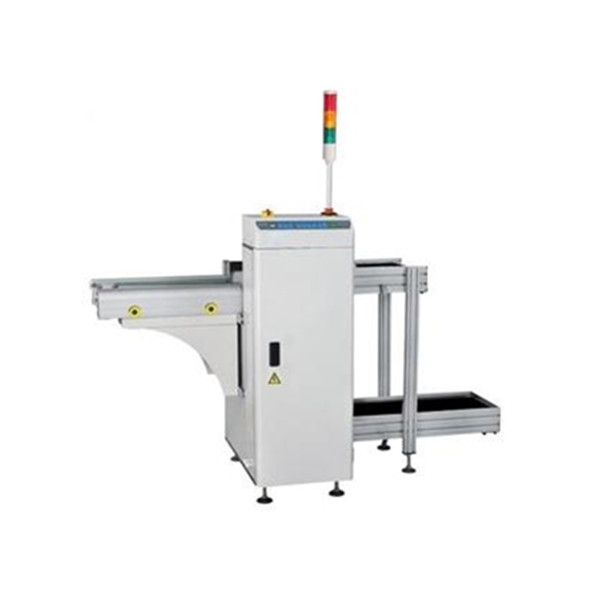

It designed to load PCBs from magazine rack and deliver them into the next process, for example delivery the pcb into reflow soldering production line, each magazine rack can hold at least 50pcs of PCB, 2 or 3 racks can be put together on the machine, the machine will automatic delivery one by one, it is full automatic controlled delivery system, high efficient and exact delivery the PCB and loading.

Unloader feature:

1.Special aluminum alloy body, better to know the working status of magazines.

2.Solid cast lift design improving the stability.

3.Panasonic PLC control, multi-function electrical circuits and program design

to ensure smooth working line.

4.Humane programming, 4 PITCH chooses, can set the step of receiving/sending PCBs.

5.Standard SMEMA interface, can be connected with other automation equipments.

6.Using engineering plastic flat strip for magazine’s transmission.

7.PCB transmission speed adjustable.

8.Three-point positioning,up-down pneumatic clamping to ensure accurate location of magazines.

9.Pushing protection system ensures the PCB will not be damaged.

wooden case packing
