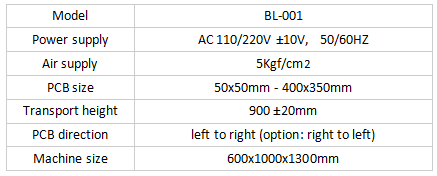

Description:Used for loading PCB from the Magazine

Time Feed PCB:Approx. 10 seconds or Specify

Max PCBs Capacity:400pcs

Power Source:220VAC 50/60HZ

Air Pressure & Consume:4-6 bar, Max 10ltr/min

PCB Thickness:0.6mm

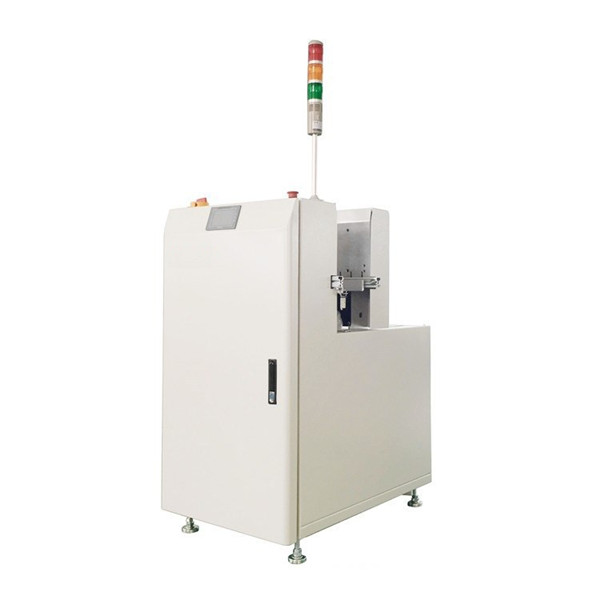

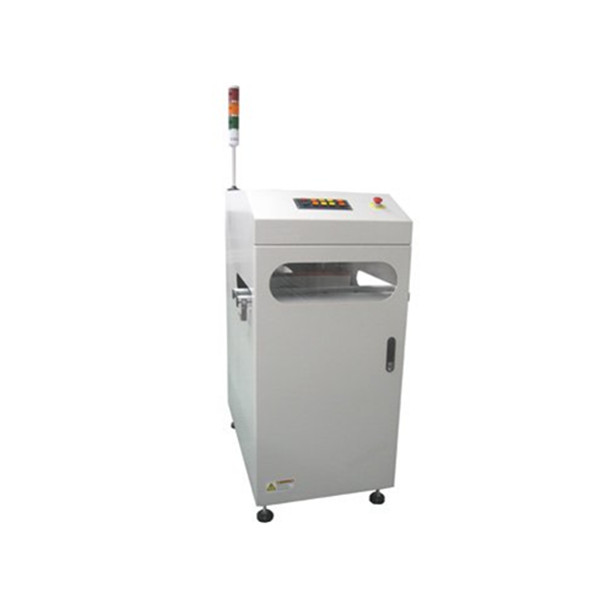

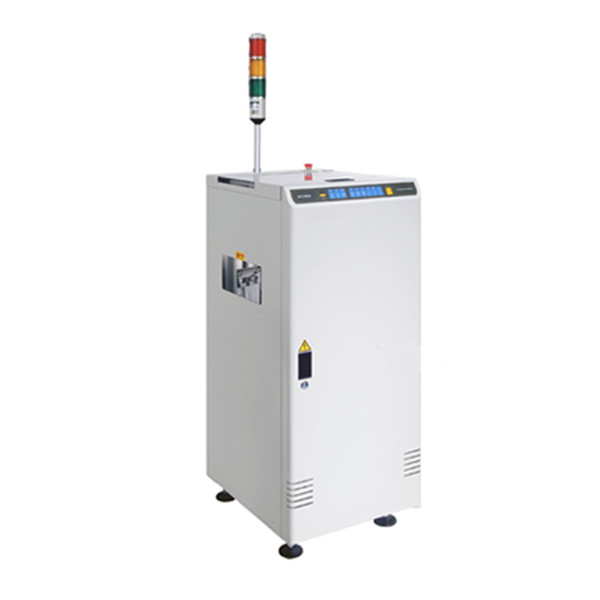

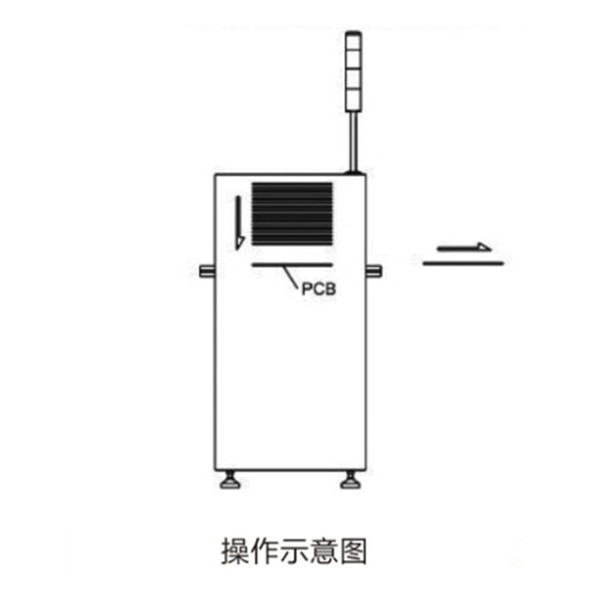

The Bare Board Loader designed for automatically loading unpopulated boards at the beginning, or in the middle of a PCB assembly line. The bare boards are lifted one by one from the stack by vacuum and are gently lowered onto the belt segment, ready for the downstream machine. The PLC program allows PCB to be sucked and sent out smoothly.

Features

1.  PLC control system.
2. FUJI button, easily operation.
3. By pass mode selectable.
4.  Agility sucker design, position adjustable.
5. Single vacuum equipment design, suck PCB more stable.
6.  PCB width and position adjustable
7.  SMEMA compliant.
