WS01-EC-1006 Hot sale electrostatic discharge wrist strap good usage ESD wrist strap

  • Model: WS01-EC
  • Brand: Maxsharer
  • Delivery: 10-15 days
  • Warranty: 12 months

INQUIRY NOW

×Enter your message





    WS01-EC

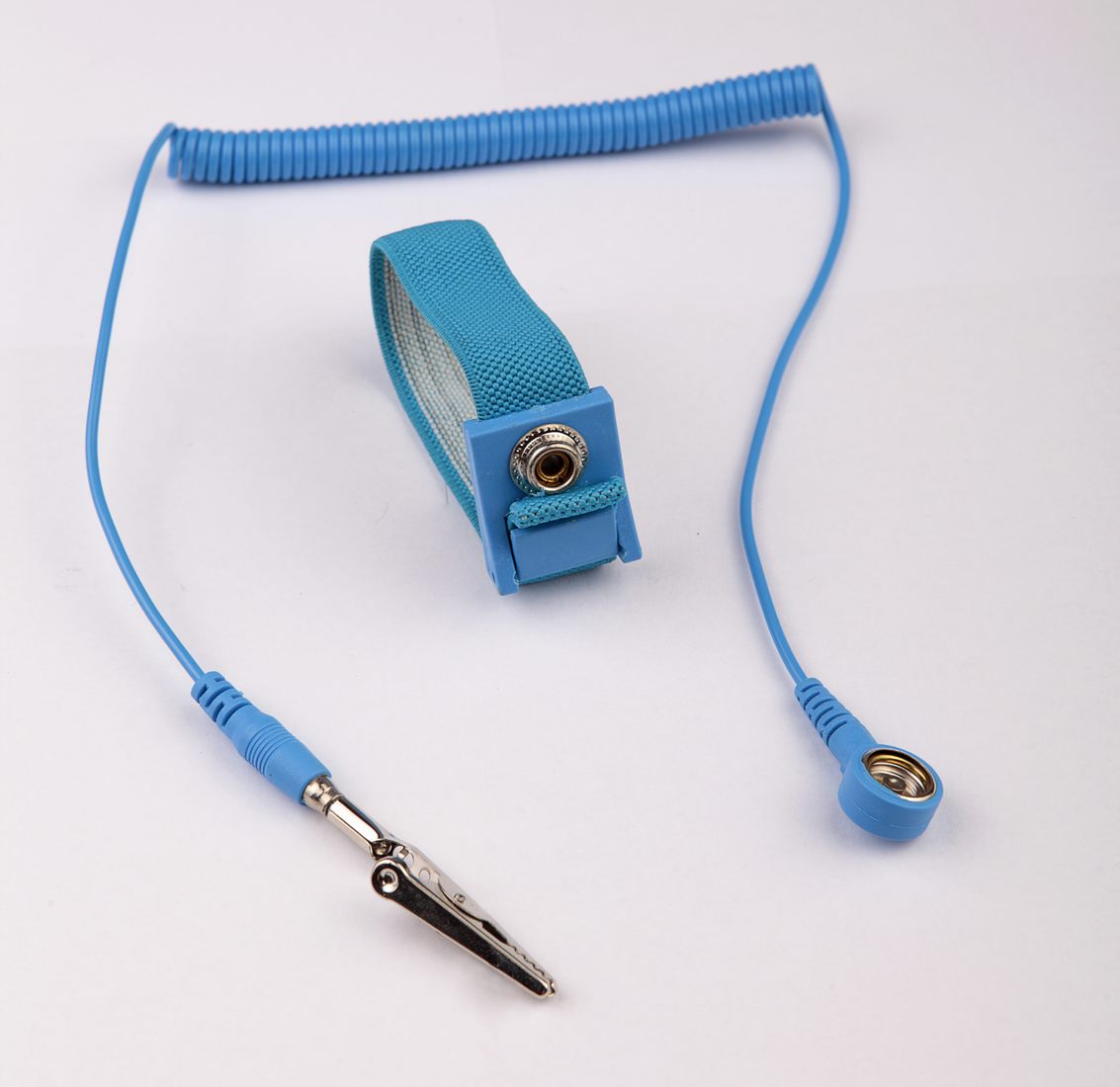

    Wrist band

    Length:  standard 200mm,customized available.
    Material:polyester, natural rubber, conductive fibre blend.(standard quality)
    Color : light blue, (dark blue, yellow, green,black, purple. red available)
    resistance : less than 100,000 ohms. ( inner side) ,  less than 1000,000,000,000 ohms (outer side)
    Plastic parts :  ABS
    Stud:  copper with chrome plated
    back plant : stainless steel, non-allergenic.

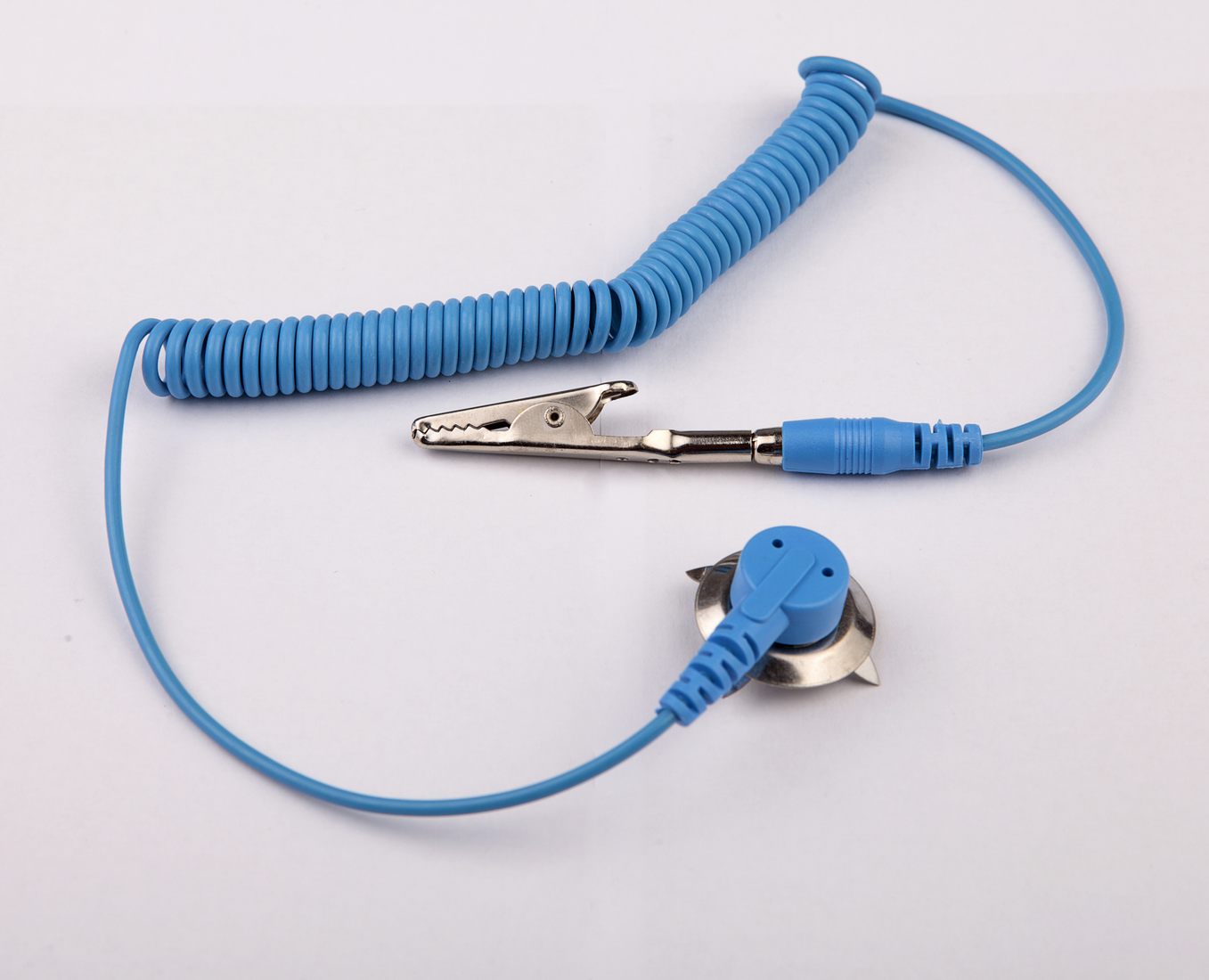

    Coil cord
    Copper conductor: 7single tinse-strand l wire.
    Outerside plastic : Polyurethane (PU)
    Cord diameter  0.09" (2.3mm). customized available.
    Molding Material :PVC.
    Socket : copper with chrome plated, 4mm,7mm or 10mm molded female snap at one end Molded banana plug at the other end or female snap.
    1Megohm risistor at female snap end for safety.
    length : 6ft, 8ft, 10 ft, 12ft, 15ft available.
    color: light blue, blue, black , green, yellow available

    P.N.WS01-EC-BWS01-EC-0406WS01-EC-0410WS01-EC-0706WS01-EC-0710WS01-EC-1006WS01-EC-1010
    Snap SizeWrist strap band only4mm4mm7mm7mm10mm10mm
    Cord Length6ft10ft6ft10ft6ft10ft



    Anti-static wrist strap is widely used in body static control

    1pc/ pp bag; 500pcs/ carton; carton size: 400*400*300mm
