Description

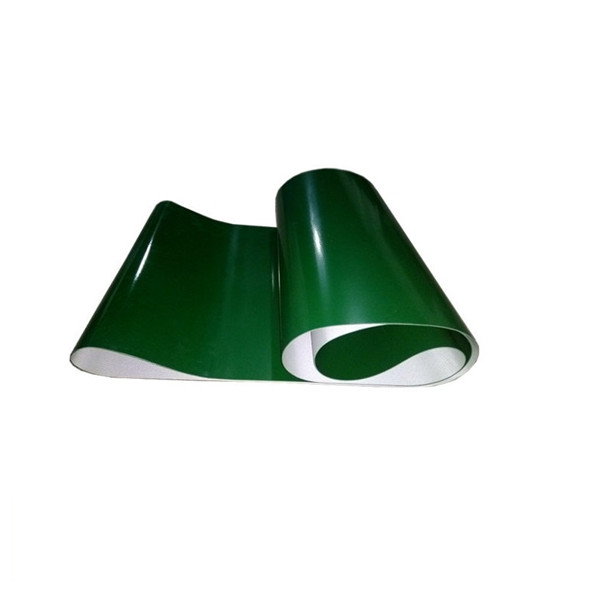

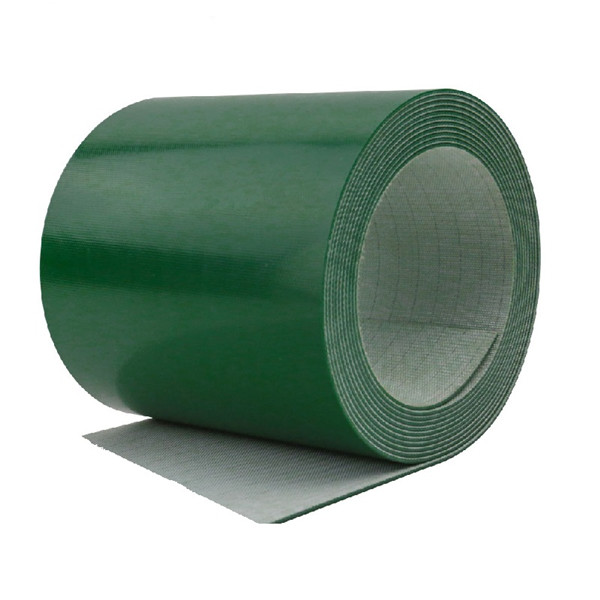

♦ Antistatic rubber ESD mat(conveyer belts) is mainly used in the assembly line of electronic components.
♦ The product featured stable anti-static performance,high tensile strength,satisfactory flexural strength
♦ Length,width,thickness and colors are all selectable.
♦ Anti-distortion, long life quality
Specification
| Thickness(mm) | Tensile Strength(N/mm) | 1%Extension load(N/mm) | Minimum diameter of belt wheel(mm) | Suitable temperature(℃) |
| 1.5 | 120 | 32 | 40 | -10-100 |
| 2.0 | 120 | 32 | 50 | -10-100 |
| 2.5 | 180 | 48 | 60 | -10-100 |
| 3.0 | 180 | 48 | 80 | -10-100 |
| 3.5 | 180 | 64 | 100 | -10-100 |
| 4.0 | 240 | 64 | 120 | -10-100 |
Application
1, conveyor belt is widely used in home appliances, electronics, electrical appliances, machinery, tobacco, injection molding, post and telecommunications, printing, food and other industries, the assembly of objects, testing, commissioning, packaging and transportation. Line delivery can be selected according to process requirements: ordinary continuous operation, beat operation, variable speed operation and other control methods; usually referred to as belt lines, lines, conveyors, conveyor lines and so on.
2, Conveyor belt can transport a wide range of materials, both bulk materials can be transported, but also transport a variety of cartons, bags and other pieces of a single weight of the shipment, a wide range of uses.
3, light conveyor belt structure in various forms, the conveyor belt can also add push plate, side baffle, skirt and other accessories, to meet a variety of processes
Package
By carton
