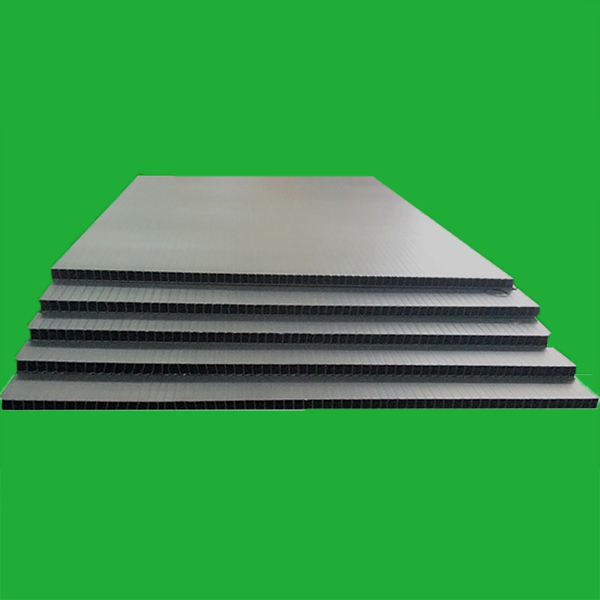

A0301 ESD corrugated sheet
● ESD type surface resistance: 107～1010Ω
● Conductive type surface resistance: 103～106Ω
● Common type surface resistance: >1012Ω
● Material is light, durable,easy to process at any style, can be manufactured according to different requirements of clients.
● It can be made into different products by different spare parts, for example, circulation box, partition, package case, lining of box, etc.
● The normal plate material size is 1m X 2m, 2m X 2m, and the depth is 2-6 mm.

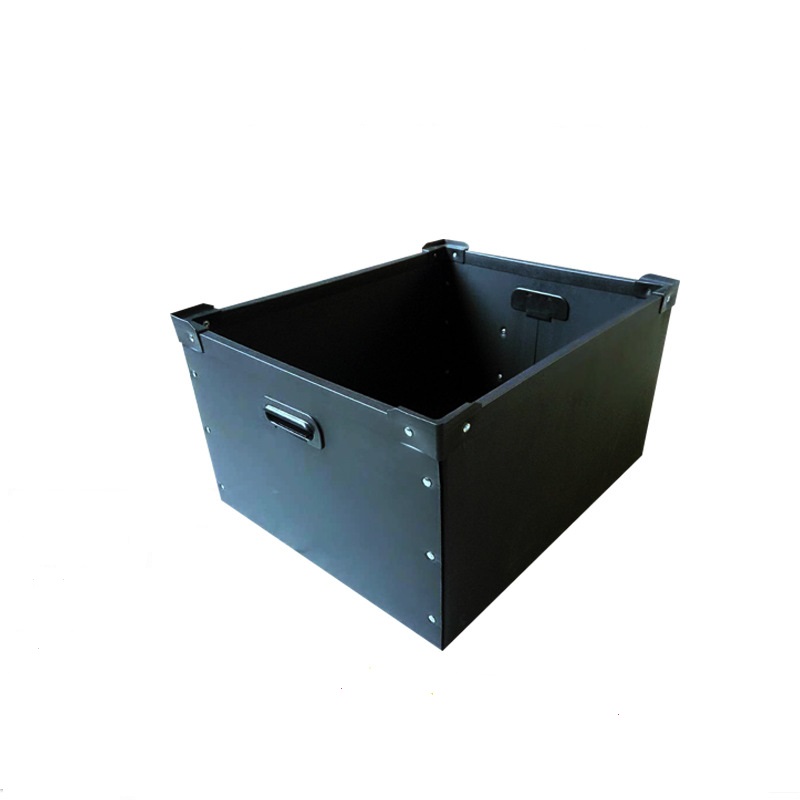

Specification For Conductive Corrugated Boxes
| Description | Supply |
| Thickness | 3->6mm |
| Substance (Gm/M2) | 700 |
| Tensile Strength (Kg/Cm) | MD 23 |
| Tensile Strength (Kg/Cm) | TD 14 |
| Elongation (%) | MD 18 |
| Elongation (%) | TD 12 |
| Dupont/Impact Strength Kg-Cm | MD 20 |
| Dupont/Impact Strength Kg-Cm | TD 15 |
| Bending Strength (Kg/Cm) | MD 1.7 |
| Bending Strength (Kg/Cm) | TD 1.5 |
| End Crush ((Kg/Cm) | MD 11.5 |
| End Crush ((Kg/Cm) | TD 1.5 |
| Flat Crush (Kg/Cm2) | 6 |
| Surface Resistivity (Ohm/Sq) | < 105 Ohm/Sq |
| Description | Supply |
| Thickness | 3->6mm |
| Substance (Gm/M2) | 700 |
| Tensile Strength (Kg/Cm) | MD 23 |
| Tensile Strength (Kg/Cm) | TD 14 |
| Elongation (%) | MD 18 |
| Elongation (%) | TD 12 |
| Dupont/Impact Strength Kg-Cm | MD 20 |
| Dupont/Impact Strength Kg-Cm | TD 15 |
| Bending Strength (Kg/Cm) | MD 1.7 |
| Bending Strength (Kg/Cm) | TD 1.5 |
| End Crush ((Kg/Cm) | MD 11.5 |
| End Crush ((Kg/Cm) | TD 1.5 |
| Flat Crush (Kg/Cm2) | 6 |
| Surface Resistivity (Ohm/Sq) | < 105 Ohm/Sq |
This box can widely used for cleanroom, antistatic function products packing.
Package: Customzied packing (By wooden or carton)
