Main Specifications:

Bench Surface:

Material: everlasting anti-static fire-proof pad, anti-static core

Advantage: alkali & acid proof, wearable and anti-strike. Static electricity is discharged vertically, avoiding static electricity goes through work area.

Size: l(1m～2m)×W(0.6m～1.2m)×T25mm

Support and spare parts

Cold rolled steel sheet baking varnish

Surface height : 670mm-1120mm

Max weight:500kgs

………………………………..

1. bench surface: (W=0.6～1.2m;L=1m～2m)
2. bench support
3. pipe support with a punch
4. hook guide(tools with 30kgs can be hooked)
5. s-265 drawer and fixer (max 10kgs)
6. adjustable shelf ( max 100kg，angle 0-25)
7. normal steel shelf (max 50kgs)
8. documents shelf (max 5kgs)
9. hanging shelf
10. upper baffle (it can hold papers and obstruct eyesight)
11. cabling slot
12. power socket (2500W，10A)
13. plastic container support (max 15kg)
14. cabinet for storing component box
15. cpu shelf (width between 180-225mm)
16. keyboard shelf
17. wrist strap socket

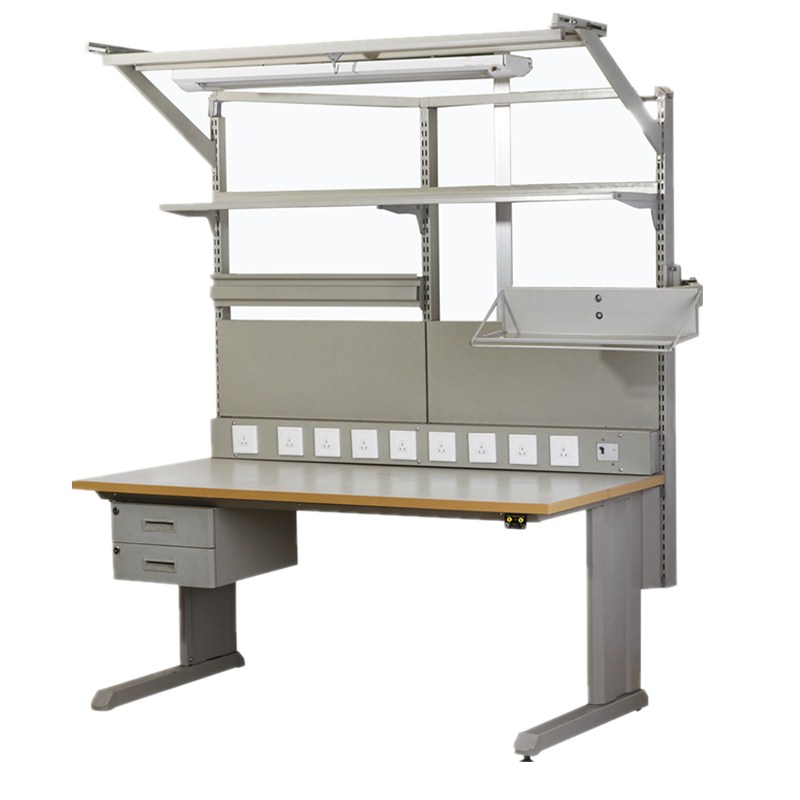

ESD workbench generally applied in electronic workshop of use

MEAS：2100*440*1030mm

Weight：198kg

1pc/ ctn
