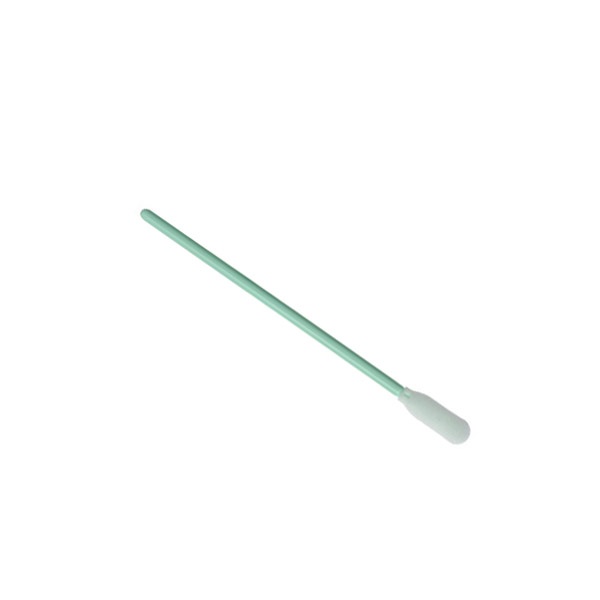

PS743 is an ideal swab for cleaning small slotted and grooved areas. It has a rigid polyester head core for support and control.
Polyester Swab PS743 is free from organic contaminants such as silicone, amide or phthalate esters. It features very low non-volatile residue (NVR), ion content and particle generation.

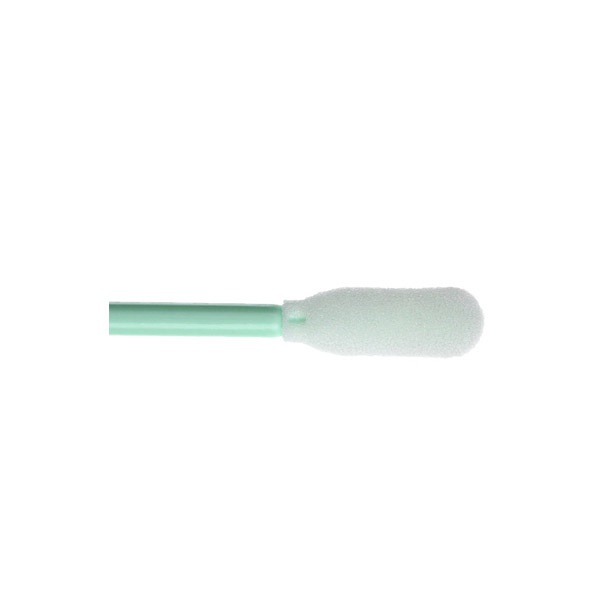

Its double layer knitted polyester head possesses high level of cleanliness and excellent solvent resistant.
Polyester Swab PS743 is excellent for general purpose cleaning.
PHYSICAL CHARACTERISTICS
_________________________________________________________________
Property Description
_________________________________________________________________
Tip Head Double Layer Knitted Polyester Fabric
Head Bond Thermal
Handle Material Polypropylene
HANDLE SPECIFICATION DATA
_________________________________________________________________
Part Number | Head Width | Head Thickness | Head Length | Handle Width | Handle Thickness | Handle Length | Total Length |
PS743 | 4 mm | 3.6 mm | 12 mm | 3 mm | 3 mm | 58 mm | 70 mm |
(0.157") | (0.142") | (0.472") | (0.118") | (0.118") | (2.283") | (2.756") |
CONTAMINATION CHARACTERISTICS
_________________________________________________________________
Particles, Readily releasable
Particles > 0.5 um < 25000 counts/swab
_________________________________________________________________
Non-volatile Residue
DI Water < 0.15 mg/swab
IPA < 0.40 mg/swab
Ion Content
Chloride < 0.90 ug/swab
Sulphate < 0.40 ug/swab
Total Anions < 1.30 ug/swab
_________________________________________________________________
Organic Contamination
No detectable silicone, amide or DOP.
_________________________________________________________________
Handle Resistivity 10×10 8-9 Ohms/Sq
Polyester Swab PS743 (Compatible with ITW Texwipe TX743B Polyester Swab)ESD CHARACTERISTICS ( Optional for PS743E)
_________________________________________________________________
Handle Resistivity 10×10 8-9 Ohms/Sq
- Cleaning with solvents such as IPA.
- Cleaning surfaces and hard to reach areas.
- Applying lubricants or other liquids
- Remove flux residues and excess materials.
- For general purpose cleaning.
- No contaminating coatings.
- Design: with compact handle.
500 swabs / bag;
5 inner bag of 100 swabs;
100 bags /case
