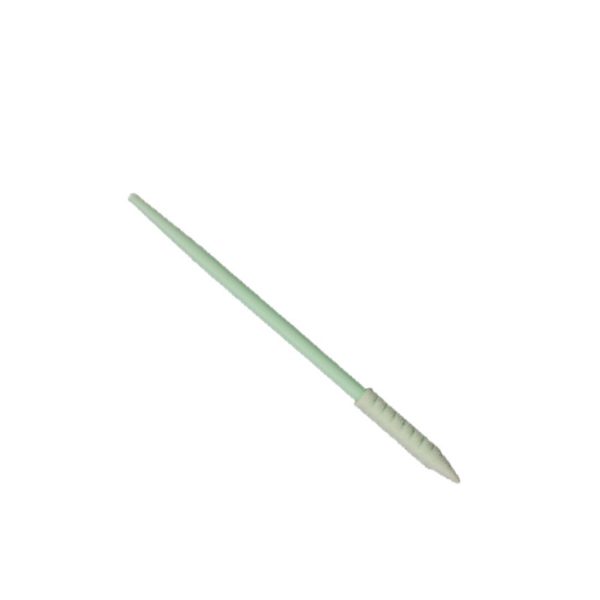

ESD-Safe Spiral Pointed Foam Swab FS752 is an excellent and popular cleaning foam swab for cleaning small slots, grooves, and right angle corners on the sliders and actuator arm of the magnetic head stack assembly in hard disk drive industry.
This type of small pointed tip foam swab can be very effactively collect dust and other contaminants. Anti-static Cleanroom foam Swabs FS752 are also the ideal swabs to use in cleaning static sensitive components or parts.
PHYSICAL CHARACTERISTICS
_________________________________________________________________
Property Description
_________________________________________________________________
Foam Head 100 PPI Polyurethane Foam
Head Bond Thermal
Handle Material Polypropylene
Part Number | Head Width | Head Thickness | Head Length | Handle Width | Handle Thickness | Handle Length | Total Length |
FS752 | 3.5 mm | 3.5 mm | 21 mm | 2.9 mm | 2.9 mm | 49 mm | 70 mm |
(0.138") | (0.138") | (0.827") | (0.114") | (0.114") | (1.929") | (2.756") |
CONTAMINATION CHARACTERISTICS
_________________________________________________________________
Particles, Readily releasable
Particles > 0.5 um < 25000 counts/swab
_________________________________________________________________
Non-volatile Residue
DI Water < 0.15 mg/swab
IPA < 0.40 mg/swab
Ion Content
Chloride < 0.90 ug/swab
Sulphate < 0.40 ug/swab
Total Anions < 1.30 ug/swab
_________________________________________________________________
Organic Contamination
No detectable silicone, amide or DOP.
Applications & Industries
n Cleaning with compatible solutions and solvents such as IPA
n Effectively clean small hole, tight, hard to reach areas
n Remove flux residue and excess material
n Use in any static sensitive application
n Micro-mechanical Cleaning
n Used in the electronics, semiconductor, hard disk drive, Optics-electronic, LCD,PCB,SMT, IC, medical field and biotech industries.
Packing
500 Swabs/Bag
5 Inner Bags of 100 Swabs
50 Bags/Case
