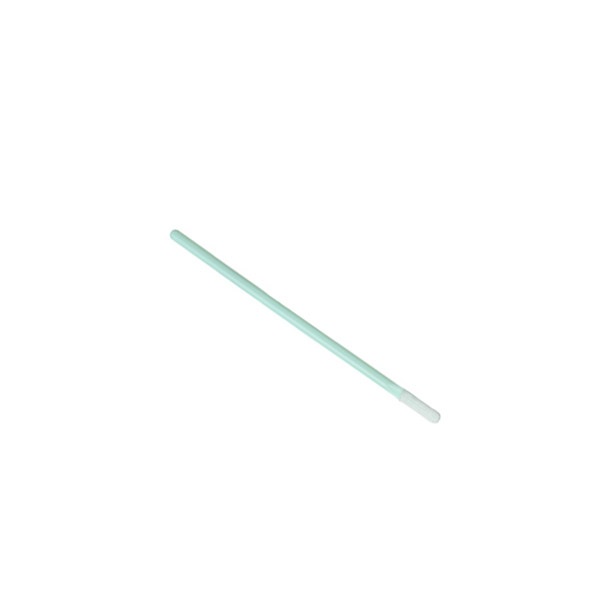

MS759 is an excellent swab for cleaning parts and assemblies in confined thin groove space where thickness height is a major concern.
Its single layer knitted microfiber polyester head possesses high level of cleanliness and excellent solvent resistant and is the ideal swab to use effectively in eliminating contamination on surfaces and cleaning small slotted and grooved areas.
PHYSICAL CHARACTERISTICS
_________________________________________________________________
Property Description
_________________________________________________________________
Tip Head Microfiber Double Layer Knitted Polyester Fabric
Head Bond Thermal
Handle Material Polypropylene
HANDLE SPECIFICATION DATA
_________________________________________________________________
Part Number | Head Width | Head Thickness | Head Length | Handle Width | Handle Thickness | Handle Length | Total |
MS759 | 2.4 mm | 1.4 mm | 10.0 mm | 2.2 mm | 2.2 mm | 60 mm | 70mm |
(0.094") | (0.055") | (0.394") | (0.087") | (0.087") | (2.362") | (2.756") |
CONTAMINATION CHARACTERISTICS
_________________________________________________________________
Particles, Readily releasable
Particles > 0.5 um < 25000 counts/swab
_________________________________________________________________
Non-volatile Residue
DI Water < 0.15 mg/swab
IPA < 0.40 mg/swab
Ion Content
Chloride < 0.90 ug/swab
Sulphate < 0.40 ug/swab
Total Anions < 1.30 ug/swab
_________________________________________________________________
Organic Contamination
No detectable silicone, amide or DOP.
ESD CHARACTERISTICS ( Optional for MS759E)
_______________________________________________________________
Handle Resistivity 10×10 8-9 Ohms/Sq
Cleanroom Microfiber Swab MS759(Compatible with ITW Texwipe TX759B Microfiber Swab)
- For cleaning delicate sensitive surface and pick up more sub-micronic particles than normal polyester swabs.
- Cleaning with solvents such as IPA.
- Cleaning small and confined areas.
- Applying lubricants or other liquids.
- Remove flux residues and excess materials.
- For general purpose cleaning.
500 swabs/bag;
5 inner bag of 100 swabs;
100 bags/case
