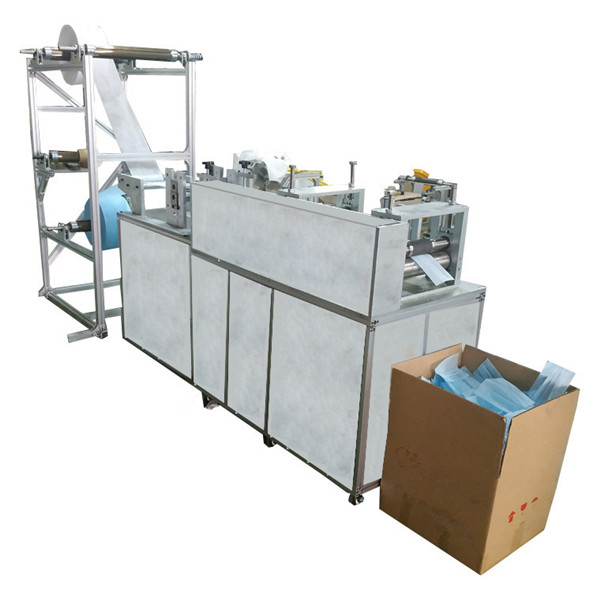

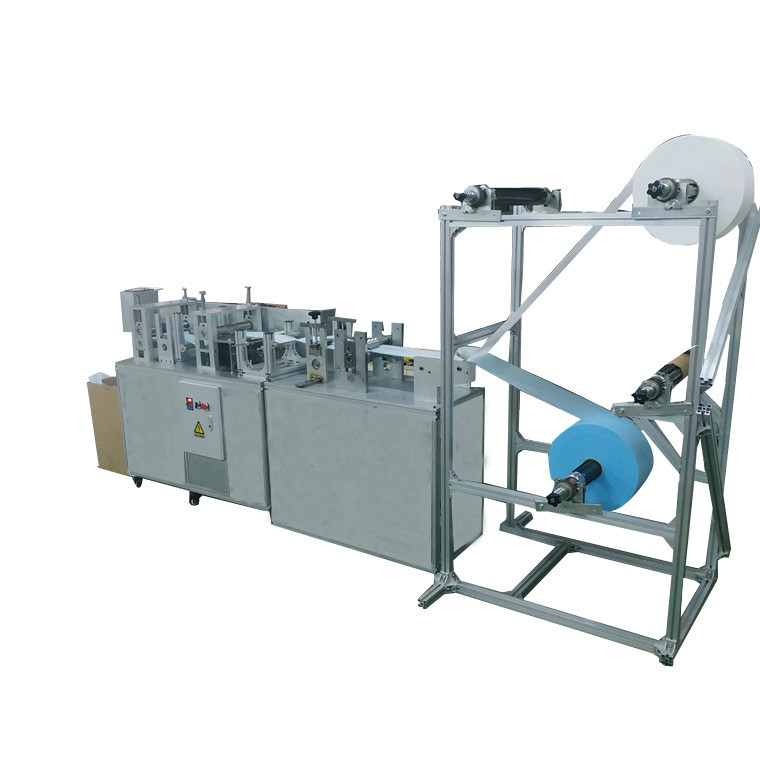

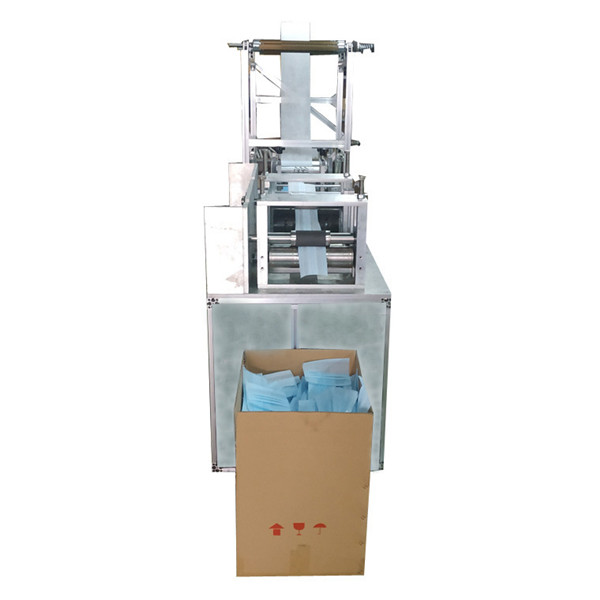

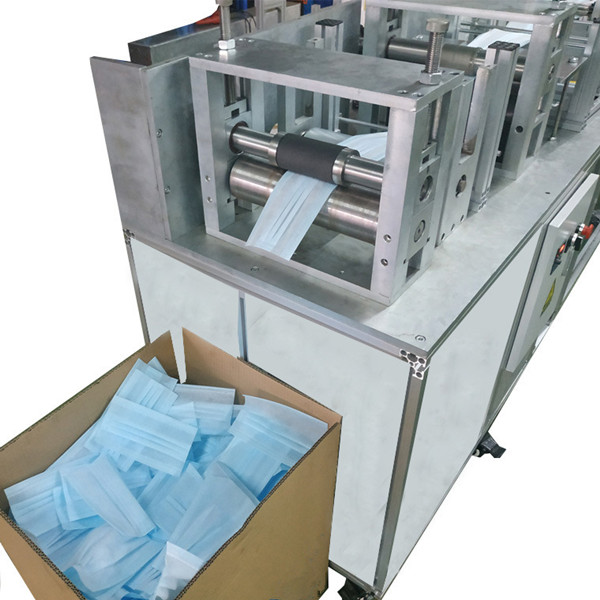

AM-DH3503 Automatic face mask making machine

  • Model: AM-DH3503
  • Brand: Aituo
  • Delivery:  5-7 days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message





    3-ply Face Mask Panel Making Machine.This machine is composed of one set of feeding machine,one set of planar face panel making machine. When you loaded your 3 rolls of non-woven fabric,the entire roll of fabric will automatically unrolled and at the same time,the fabric automatically folded and wrapped.Nose bridge rolls unrolled by traction.Cut and import into the hemmed fabric,both sides are welded to seal by ultrasonic welding,and then through the ultrasonic side seal.It is cut and shaped by a cutter. The production output of this machine around 150-180pcs/min.

    Frequency: 20KHZ
    Voltage: 220V /50HZ
    Working width: 250mm (optional)
    Output power: 3.5KW
    Weight: 350KG
    Speed: 100-160 PCS/ MIN
    Dimension: 2800 * 1000 * 2000mm
    Labor:1 person
    Occupy Area Space: About 20m²

    Application

    Package
